jr360P_5

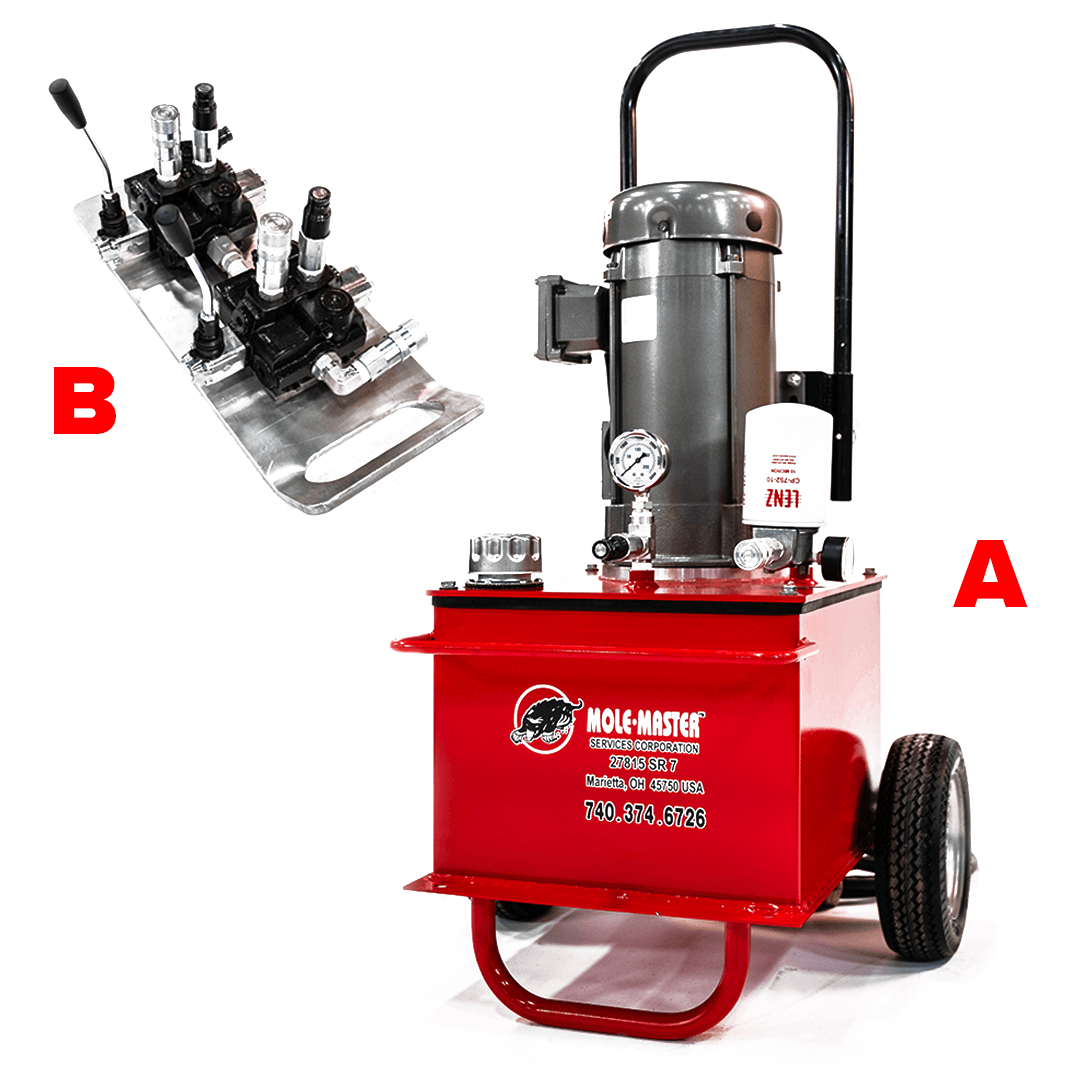

A. Hydraulic Power Pack
B. Hydraulic Controls
jr360H_4

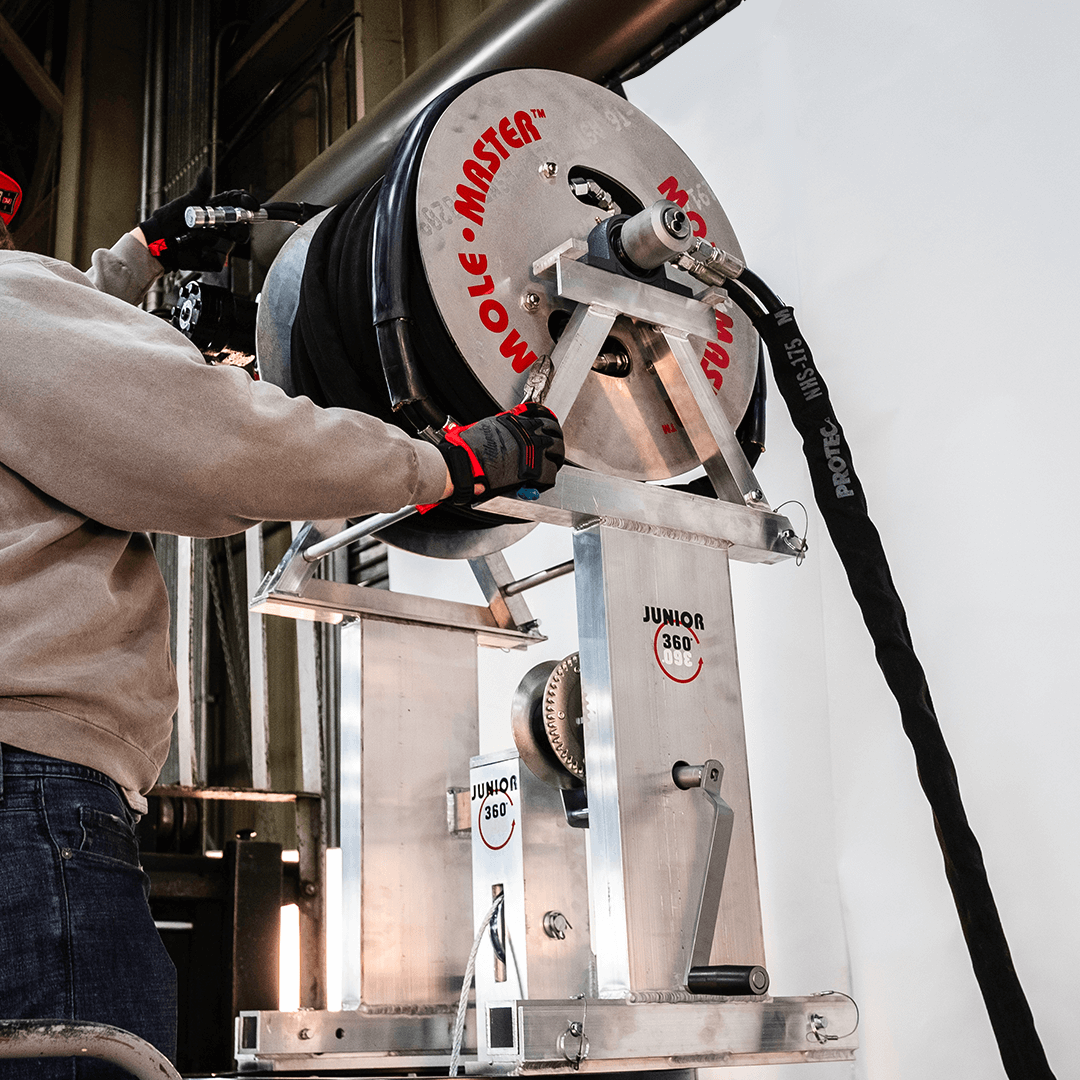

Hose Reel
jr360H_3

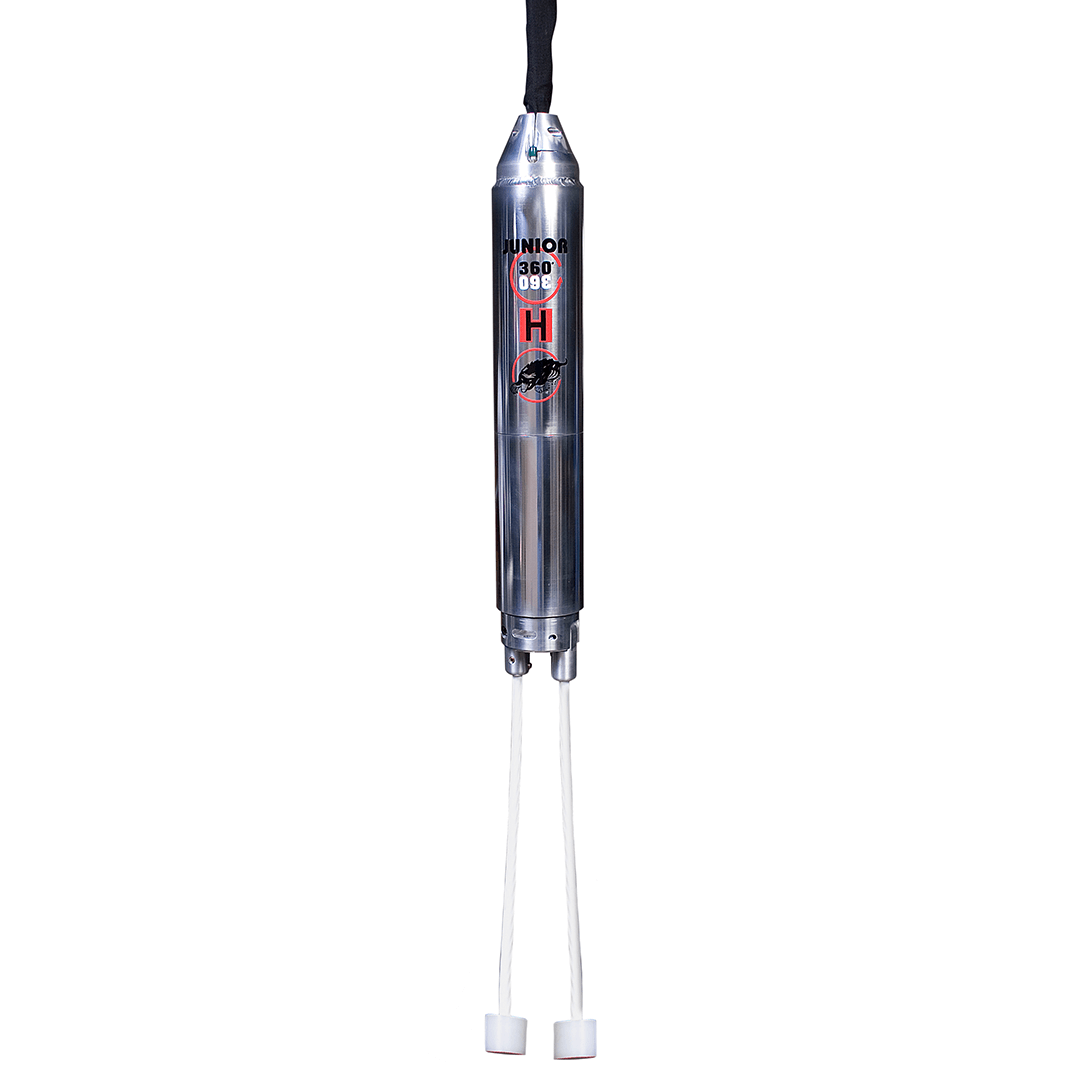

Hydraulic Cutting Head

Cutting Head’s Five-Inch Diameter is the Smallest on Market

Less Time Required to Enlarge Flow Channel

The JR360H silo and bin cleaning system features a hydraulic cutting head that is significantly smaller in diameter than any head on the market, enabling it to fit into extremely small flow channels or ratholes without losing any power or cleaning capacity.

A smaller diameter lessens time to enlarge the flow channel.

Specifications

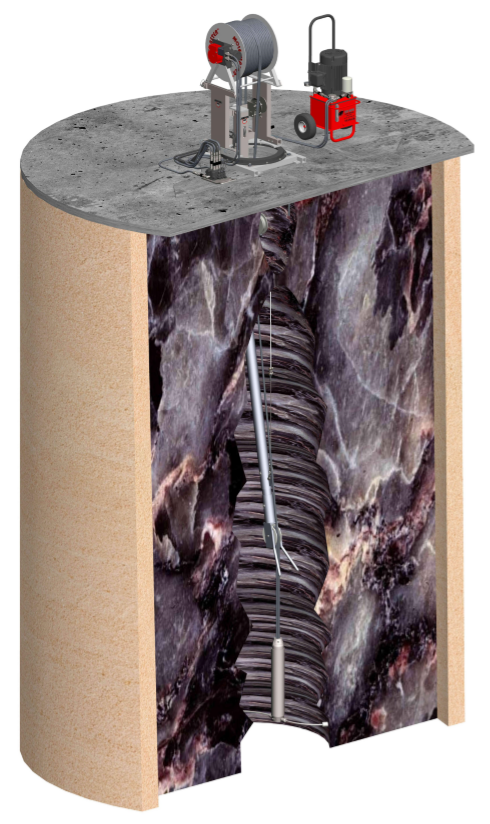

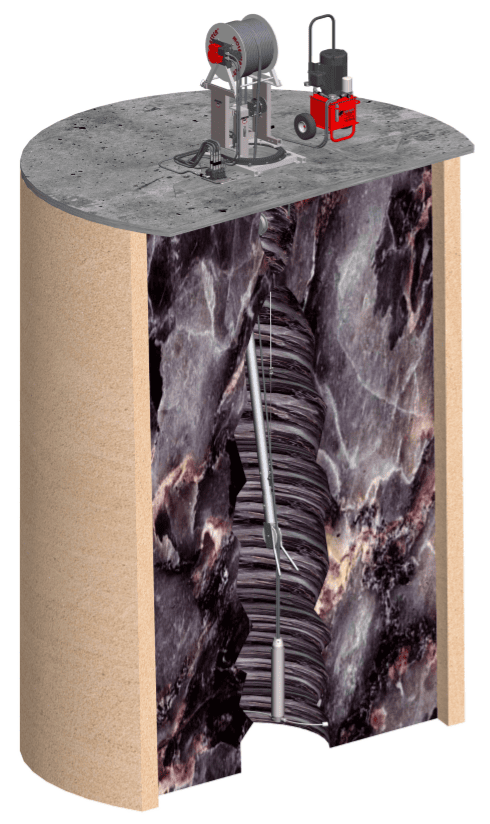

j360h-drawing
  • Cutting Head
  • Diameter: 5 inches
  • RPM: 850
  • Torque: 350 in lb
  • Weight: 91 lbs (2017 kg)
  • Boom Length — Adjustable 0′ to 28′ (0 to 8.5 m)
  • Cutting Head Hose Length — 160’ – (custom lengths available)
  • Construction Material — 6061 Aluminum
  • Hydraulic Power Pack
  • 5 hp @1750 rpm
  • Voltage:
  • 230v @ 13.4 amps 50/60hz
  • 460v @ 6.7 amps 50/60hz
  • (Optional explosion-proof motors available)
  • Pump:
  • 5.23 gpm @ 2500psi (Maximum Pressure)
  • Tanks:
  • Standard Tank Capacity: 5 gallons
  • Weight (with oil): 207 LBS
  • (Optional 10-gallon tank available at extra cost)
  • Oil Specification: ISO 32
  • (Optional food-grade oil available)
  • Shipping Weight — 1600 lbs. (725.75kg) – estimated
