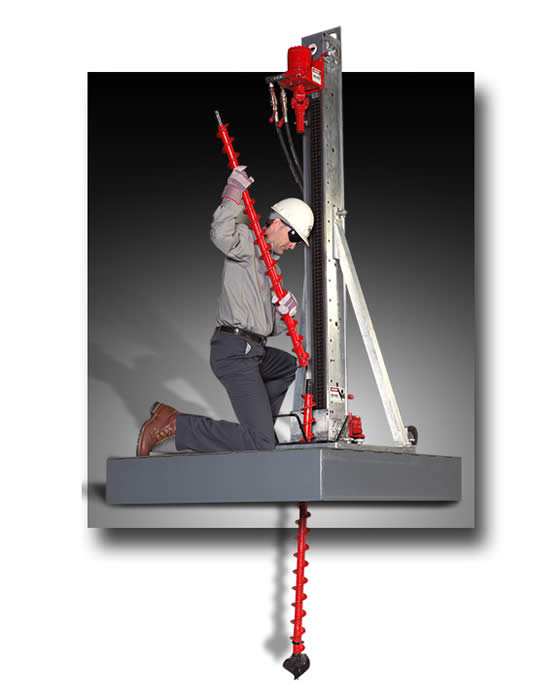

ArchMaster_drill_Man

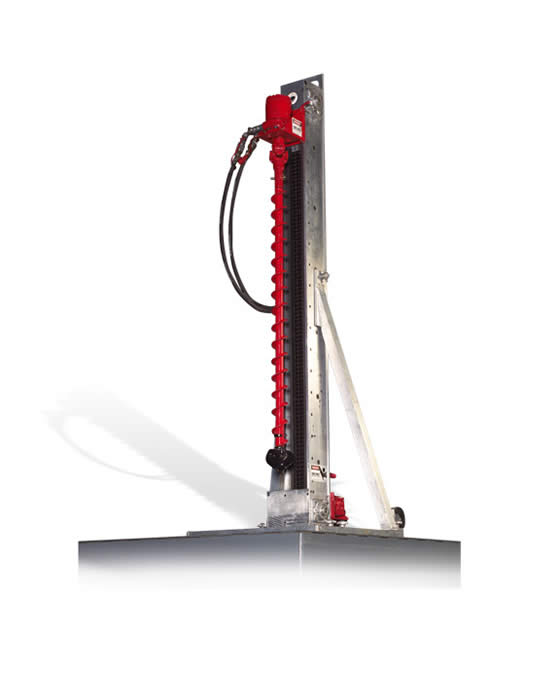

ArchMaster_drill

Do-It-Yourself Silo Cleaning and Bin Cleaning Equipment, A Faster, Safer Way To Unlock Bridged Material

Versatile, Strong, and Safe

This tough, portable miniaturized rock drill is the ideal silo cleaning equipment for material that tends to “arch” or “bridge” across the entire vessel.

The Arch•Master™ was designed to create flow channels (up to 152 feet or 45 meters deep) in arched or bridged material. In some cases, this may be all that is required. In other instances, the Junior 360º™ or our turnkey Big•Mole™ service may be needed to complete the Silo Cleaning or Bin Cleaning process.

The Arch•Master™ features a high torque, variable speed, hydraulic power head that can rapidly drill even the hardest material. Additionally, the Arch•Master™, which measures slightly over 7 feet, 4 inches (2.3 meters) in height, offers a double-roller chain drive, a special duty hydraulic motor for variable speed drilling, all-aluminum construction, heavy-duty 3 – 6 inch (7.6 – 15.2 centimeter) augers, and quick-connect hydraulic fittings.

Perfect for do-it-yourself cleanout projects involving bridged materials, the Arch•Master™ provides the right solution for a fast and safe return to full material flow.

 800.322.6653 (U.S. Only)

+1.740.374.6726

+1.740.374.5908 (fax)

contactus@molemaster.com

ArchMstr_boothgraphic

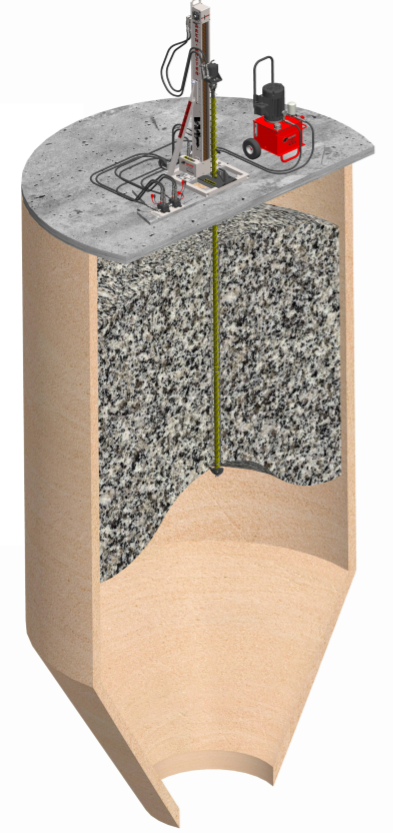

am-drawing

Arch•Master Features

  • High-torque, variable speed power head for rapidly drilling even the hardest material
  • Overall height 7’7” (2.3 m) to accommodate low head-room clearance
  • Quick-connect hydraulic fittings
  • Double-roller chain drive
  • Heavy-duty 3” to 6” (7.6 – 15.2 cm) augers to penetrate any material

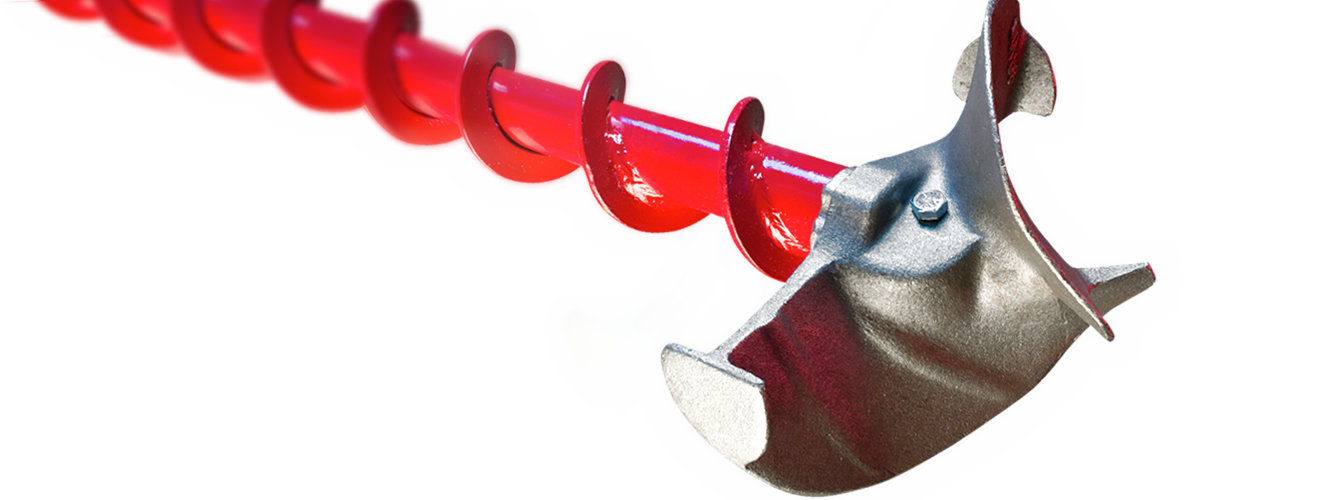

  • Specialty bits available for any application
  • Standard drilling depth 152’ (46 m)
  • Special duty hydraulic motor for variable speed drilling
  • All-aluminum construction eliminates sparking.

Specifications

  • Overall Height: 7’4” (2.3 m)
  • Shipping Weight: 737 lbs. (334.2 kg)
  • Base: 28” x 28” (71 x 71 cm)
  • Heavy-Duty Auger: 3” to 6” (7.6 – 15.2 cm)

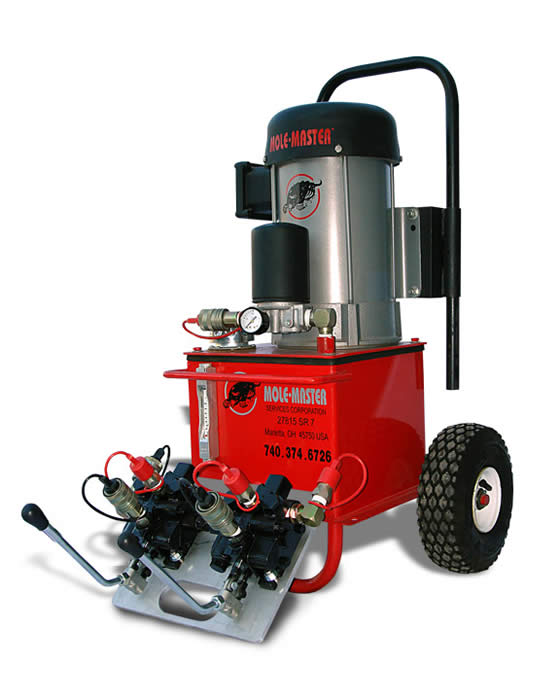

Hydraulic Power Unit

  • 5 HP, 3 phase Explosion Proof (230/460 volt)
  • 5 HP, 3 phase TEFC (totally enclosed fan cooled) (208-230/460 volt)
  • 5 HP, 3 phase TEFC (totally enclosed fan cooled) (575 volt)
  • 5 HP, 3 phase, Explosion Proof (575 volt)
  • 60 Hz (50 Hz compatible)
  • 7.5 gm available; 10 gal. reservoir
  • 10 Micron In-line Return Filter on Tank
  • Temperature/Level Gauge
  • Overall Weight: 287.5 lbs
  • Power Cord Optional

Contact us for information on purchasing or renting this silo cleaning equipment for your next diy silo cleanout project.
