jr360H_5

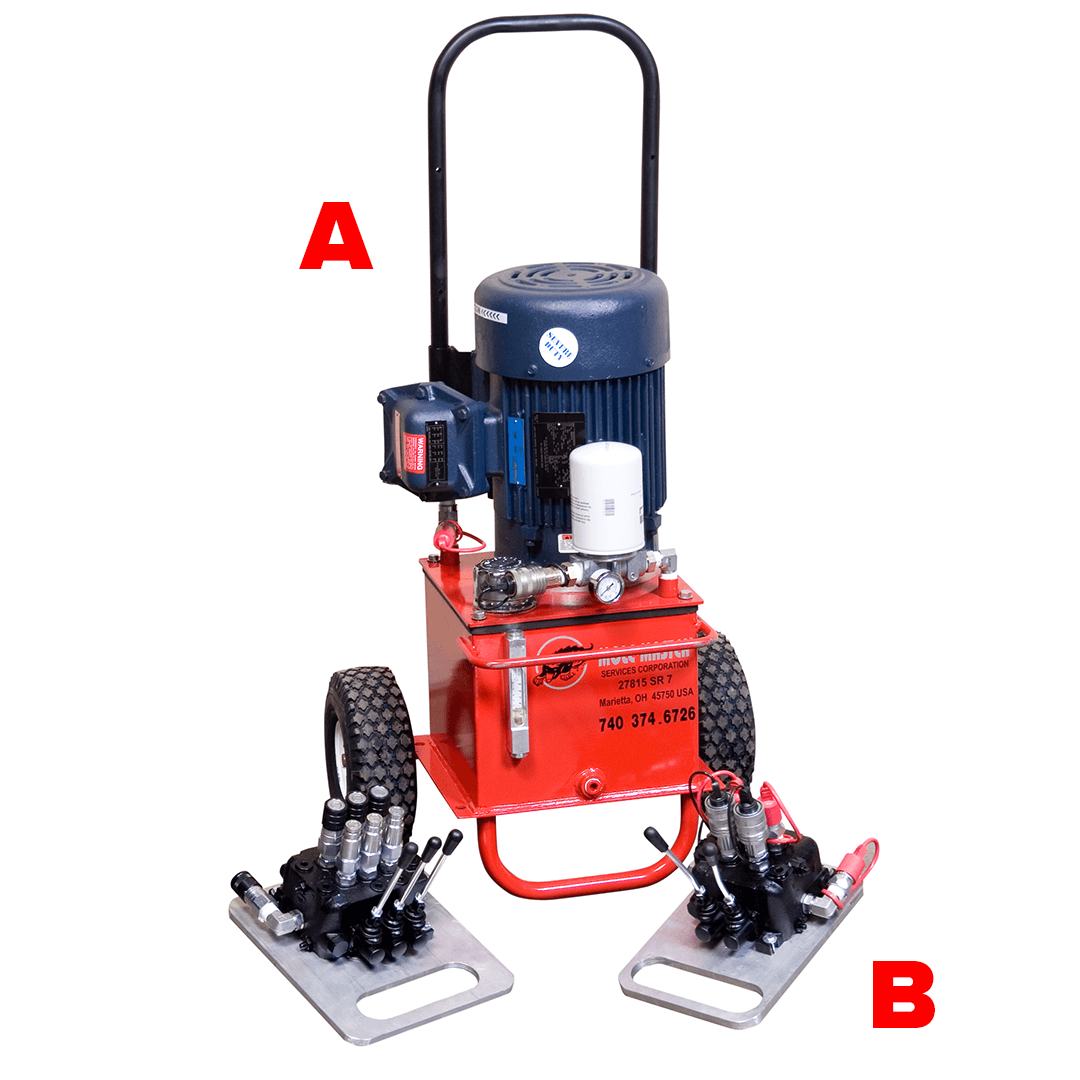

A. Hydraulic Power Pack
B. Hydraulic Controls
jr360P_3

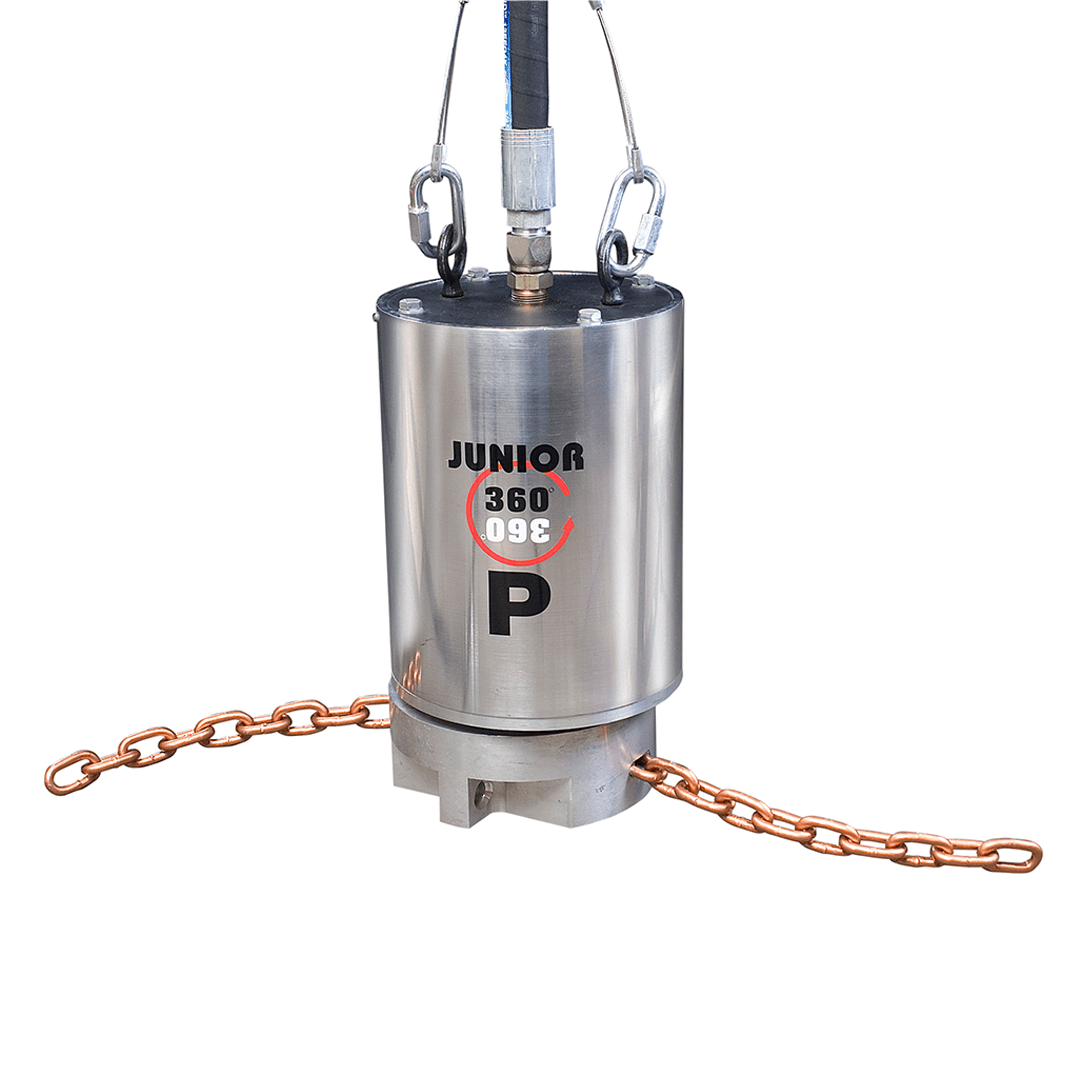

Cutting Head
jr360P_4

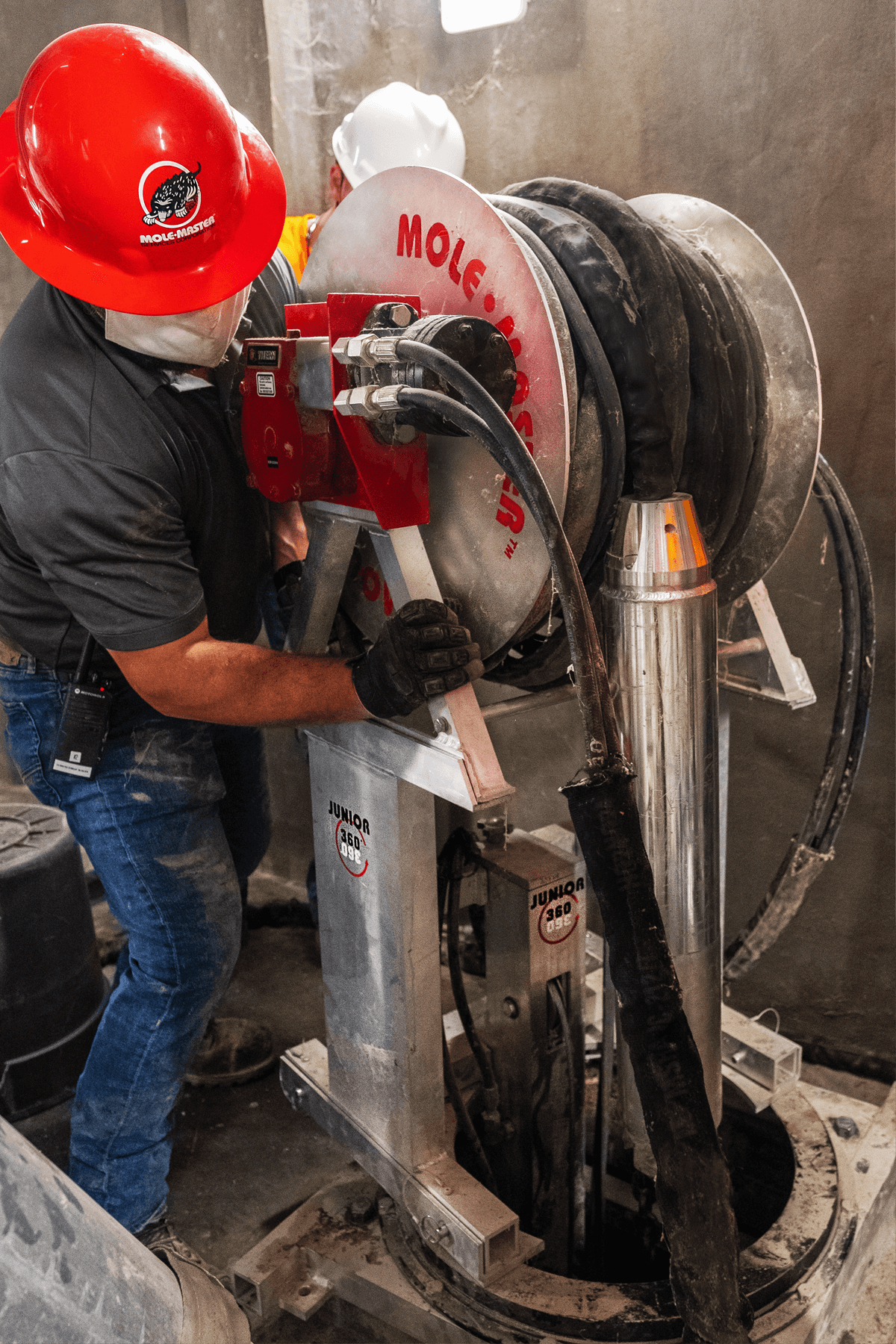

Hose Reel

Completely Redesigned to be more efficient—more operator-friendly

Zero Chance for Contamination

The JR360P silo and bin cleaning system features a pneumatically actuated cutting head and hydraulic assistance for simple operation.

Specifications

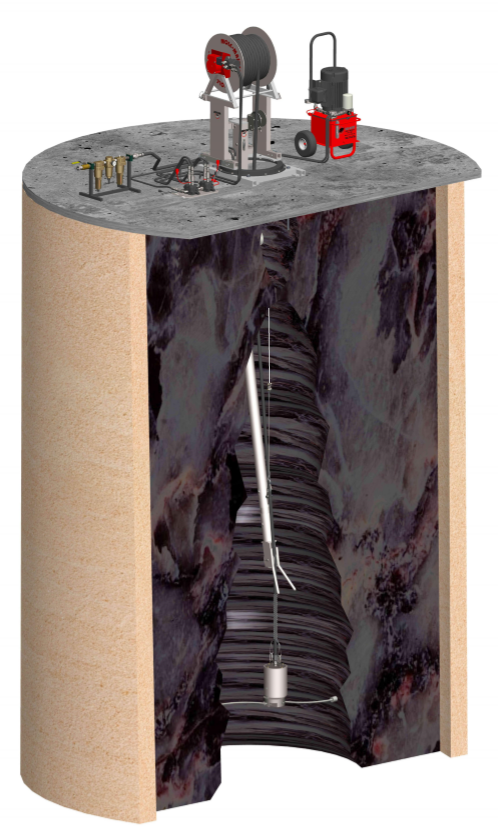

junior-drawing
  • Boom Length — Adjustable 0’ to 28’ (0 to 8.5 m)
  • Working Depth — 150′ (46 m) – optional to 200’ ( )
  • Required Access — 16” minimum (460 mm)
  • Construction Material — 6061 T6 Structural Aluminum
  • Air Requirement — Min: 65 psi/150 scfm
    Max: 125 psi/250 scfm
  • Hydraulic Power Pack
  • 5 hp @1750 rpm
  • Voltage:
  • 230v @ 13.4 amps 50/60hz
  • 460v @ 6.7 amps 50/60hz
  • (Optional explosion-proof motors available)
  • Pump:
  • 3.8 gpm @ 2500psi (Maximum Pressure)
  • Tank:
  • Standard Tank Capacity: 5 gallons
  • Weight (with oil): 207 LBS
  • (Optional 10-gallon tank available at extra cost)
  • Oil Specification: ISO 32
  • (Optional food-grade oil available)
  • Shipping Weight — 1600 lbs. (725.75kg) – estimated
